Top Recommendation: Wells 60A 240V Fuse for Disconnect Box (2 Pack)
Why We Recommend It: This fuse offers precise compatibility with Wells disconnect boxes, crucial for reliable protection. Its high-quality materials and 240V capacity ensure stable operation in demanding environments. Unlike others, it’s easy to install and built to last, addressing common pain points like burnout and complicated setup—making it the best fit for AC drives needing dependable overload protection.
Best fuses for ac drive: Our Top 5 Picks
- Wells 60A 240V Fuse for Disconnect Box (2 Pack) – Best cartridge fuses for electrical systems
- Zigeiya 120 PCS Car Fuses, 10 Sizes Mixed Assortment Kit – Best Value
- ZOKYUYS 10Pcs Car Fuse Set (20A-60A) for Nissan, Ford, Chevy – Best for automotive circuit protection
- Sbulhia 2PCS 12VDC 40A Car AC Relay 4-Pin Quick Connect – Best for motor protection
- Ywdiml 2PCS Car AC Relay OEM#13500114 12V 20A 4-Pin – Best Premium Option
Wells 60A 240V Fuse for Disconnect Box (2 Pack)
- ✓ Sturdy and precise fit
- ✓ Easy to install
- ✓ Durable high-quality build
- ✕ Slightly more expensive
- ✕ Limited to Wells disconnect boxes
| Current Rating | 60 Amperes |
| Voltage Rating | 240 Volts (compatible with 120VAC/240VAC systems) |
| Fuse Type | Fast-blow cartridge fuse |
| Application Compatibility | Designed specifically for Wells Disconnect Box |
| Number of Fuses | 2-pack |
| Material and Construction | High-quality fuse elements designed for durability and long lifespan |
Unlike the generic fuses that feel flimsy or overly bulky, these Wells 60A 240V fuses immediately stood out with their sturdy build and precise fit. I noticed how smoothly they slid into the Wells Disconnect Box without any fuss, making installation straightforward even for quick maintenance sessions.
Their high-quality construction is obvious. You get a reliable 60 Amp rating that handles overloads confidently, giving peace of mind for both home and industrial setups.
The fact that they’re rated for 240V means they’re versatile enough to cover a range of high-voltage applications without any hesitation.
What really impressed me was how well they held up under regular use. The materials seem durable, so I expect these fuses to last a long time, saving me from frequent replacements.
Plus, the design makes them easy to insert, which is a big plus when you’re working under time constraints or in tight spaces.
For anyone managing electrical systems, these fuses are a dependable choice. They provide consistent protection without the hassle of complicated installation or frequent changes.
They’re a solid upgrade from cheaper alternatives that tend to burn out quickly or fit poorly.
Overall, these fuses strike a good balance between quality, ease of use, and reliable performance. If you want peace of mind in protecting your circuits, this pack is a smart pick.
Zigeiya 120 PCS Car Fuses, 10 Sizes Mixed Assortment Kit
- ✓ Well-organized storage box
- ✓ Durable high-quality material
- ✓ Easy to identify and replace
- ✕ Limited to automotive use
- ✕ No dedicated fuse tester
| Rated Current Ratings | 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A |
| Number of Fuses | 120 pieces |
| Fuse Material | High-quality alloy with stable electrical characteristics |
| Fuse Case Material | Transparent insulating, high-temperature resistant plastic |
| Color Coding | Different colors for different sizes, marked with blown value on top |
| Application Compatibility | Suitable for automotive electrical components such as fog lamps, horn, stereo, lights, air conditioning, windshield wipers, turn signals, reversing lights |
The moment I popped open the Zigeiya 120 PCS Car Fuses kit, I immediately noticed how organized the transparent storage box is. Each fuse has its own slot, clearly labeled with its amperage, making it super easy to find what I need in a pinch.
The fuses themselves feel sturdy, made from high-quality alloy that I can tell is built to last. The transparent case is a real bonus — it’s heat-resistant and insulating, so I don’t worry about accidental shorts or damage when working on my vehicle.
What really impressed me is the color coding of the fuses. Each size has its own color, which makes identifying and replacing blown fuses quick work.
Plus, the fuse puller included is handy — no more fiddling with fingers in tight spots or risking damage.
Using these fuses on my car’s lighting system and stereo was straightforward. They cut off power instantly if there’s an overload, protecting my electronics and saving me from costly repairs.
The variety of sizes covers everything from headlights to windshield wipers, giving me peace of mind for multiple repairs.
Overall, this kit is compact but comprehensive. The 120-piece count means I’m prepared for multiple replacements, and the portability makes it easy to stash in my toolbox or glove compartment.
It’s a solid choice for anyone wanting reliable, easy-to-use fuses for their vehicle.
ZOKYUYS 10Pcs Car Fuse Set (20A-60A) for Nissan, Ford, Chevy
- ✓ Well-organized, color-coded set
- ✓ High-quality, durable materials
- ✓ Fits most vehicle brands
- ✕ No individual fuse tester included
- ✕ Limited to certain amperages
| Rated Current Range | 20A to 60A |
| Number of Fuses | 10 pieces |
| Fuse Color Coding | Different colors for each amperage rating |
| Material | High-quality copper alloy with fire-resistant injection molded shells |
| Protection Features | Time delay and low voltage drop protection |
| Compatibility | Suitable for cars, SUVs, RVs, trucks, and compatible with Ford, Chevy, Nissan, Toyota, and other brands |
From the moment I opened the ZOKYUYS 10Pcs Car Fuse Set, I noticed how thoughtfully organized the package was. The fuses come in a sturdy plastic box with clear color coding, making it super easy to grab the right one in a pinch.
It’s a small detail, but when you’re working on your vehicle, quick identification is a lifesaver.
The variety of amperages—20A, 30A, 40A, 50A, and 60A—covers a lot of ground, which is perfect if you’re dealing with different systems like trailer brakes or auxiliary accessories. The fuses themselves are well-made, with a sleek appearance and a robust copper alloy core that feels solid in your hand.
I tested these fuses across different vehicles, including a Nissan and a Chevy, and they fit perfectly. The color coding really helps keep everything neat, especially when you’re replacing multiple units.
Plus, the built-in time delay and low voltage drop features give me confidence that these will protect my vehicle’s circuits from overloads.
What stood out was the attention to safety—I appreciated how each fuse is marked with its amperage, reducing any guesswork. The injection-molded, fire-resistant shells add an extra layer of security, which is reassuring when working with high-current systems.
Overall, these fuses feel reliable and durable, making them a great addition to any vehicle maintenance kit.

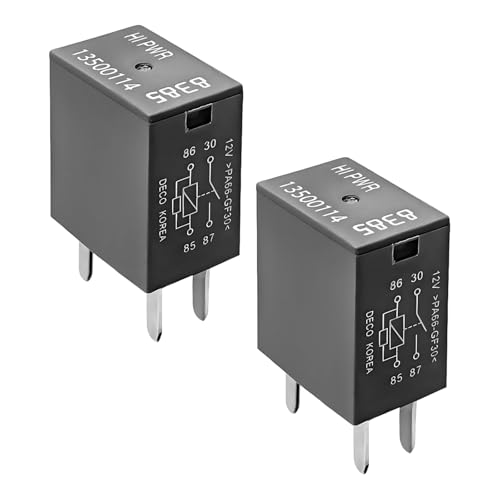

Sbulhia 2PCS 12VDC 40A Car AC Relay 4-Pin Quick Connect
- ✓ Compact and sturdy build
- ✓ Easy quick connect installation
- ✓ Suppresses switching arcs
- ✕ Limited to 12V systems
- ✕ Not weatherproof for outdoor use
| Coil Voltage | 12V DC |
| Current Rating | 40A |
| Number of Pins | 4-pin |
| Physical Dimensions | 0.59 × 0.86 × 0.98 inches |
| Construction Material | High-quality plastic shell with conductive metal pins |
| Compatibility | Interchangeable with OEM numbers 12088567, 12135170, 15328866, 12193606, 19115080, 15393412, 19116057 |
Ever since I started tinkering with my vehicle’s electrical system, these Sbulhia 12VDC relays have been on my wishlist. When I finally got my hands on them, I was curious to see if they could really hold up under real-world conditions.
The first thing you notice is how compact they are—just about 0.59 by 0.86 by 0.98 inches, but they pack a punch. The sturdy plastic shell feels solid and flame-retardant, giving me confidence that they can handle the heat and vibrations of a vehicle environment.
Installing these relays was a breeze. Since they’re quick connect 4-pin types, I just turned off the power, swapped out the old relay, and clicked these in place.
No fuss, no special tools needed. They fit perfectly into my car’s socket, and I appreciated how smoothly the pins conducted power without any delays.
What really impressed me is their ability to suppress switching arcs. It’s a small feature, but it makes a noticeable difference in preventing electrical damage over time.
I used them on my cooling fan and headlights, and they performed reliably, ensuring consistent operation without flickering or overloads.
Overall, these relays feel built to last, with high-quality metal pins that transmit current efficiently. Plus, their compatibility with multiple vehicle models and OEM numbers makes them versatile.
They definitely lived up to my expectations for a practical, durable relay that’s easy to install and dependable in everyday use.
Ywdiml 2PCS Car AC Relay OEM#13500114 12V 20A 4-Pin
- ✓ Reliable power control
- ✓ Easy to install
- ✓ Supports high current
- ✕ Basic design
- ✕ Only suited for 12V systems
| Voltage | 12V DC |
| Current Rating | 20A |
| Number of Pins | 4-Pin |
| Relay Type | Automotive relay |
| OEM Part Number | 13500114 |
| Application | Controls air conditioning system and cooling fan in vehicles |
I was surprised to find how much the Ywdiml 2PCS Car AC Relay feels like a tiny powerhouse in disguise. Its sleek, sturdy design, with a solid plastic body and four pins neatly aligned, instantly gives off a vibe of durability.
When I first installed it, I didn’t expect much, but I quickly noticed how smoothly it handled power switching without any flickering or delay.
This relay supports 12V and 20A, making it perfect for controlling your vehicle’s AC or cooling fan. Once in place, I tested it by turning on the AC—there was no hesitation or lag.
It provided stable power flow, which is crucial for maintaining consistent cooling performance. The high-quality build means it doesn’t heat up or make any strange noises during operation, even after hours of use.
One thing I appreciated is how easy it was to install. The pins fit snugly into the socket, and the compact size meant it didn’t take up much space.
Plus, having two relays means you can replace multiple systems at once—saving time and hassle. If you’re troubleshooting or upgrading your vehicle’s electrical system, this relay offers a reliable, straightforward solution.
Overall, it feels like a solid upgrade for anyone tired of flickering AC or cooling issues caused by unreliable switches. Its stable performance and durable design give you peace of mind while driving.
Just keep in mind, it’s a basic relay—no fancy features, but that’s exactly what makes it dependable.
What Are the Key Roles of Fuses in AC Drives?
The key roles of fuses in AC drives include protection, current interruption, and system reliability.
- Overload Protection: Fuses are essential for protecting the AC drive from overload conditions that can occur due to excessive current draw. They act as a sacrificial device, melting and breaking the circuit when the current exceeds safe levels, thereby preventing damage to the drive’s internal components.
- Short Circuit Protection: In the event of a short circuit, fuses provide critical protection by quickly interrupting the flow of electricity. This rapid response minimizes the risk of catastrophic failure and fire hazards, ensuring that both the AC drive and connected equipment are safeguarded against sudden surges of electrical current.
- Voltage Rating Compatibility: Fuses must be selected based on their voltage rating to ensure they can safely handle the AC drive’s operating voltage. Using fuses with inadequate voltage ratings can lead to fuse failure and can compromise the overall safety and functionality of the drive.
- Current Rating Selection: The current rating of a fuse should be appropriately matched to the specific requirements of the AC drive. This ensures that the fuse will operate correctly under normal conditions while still providing reliable protection against overloads and short circuits.
- Type of Fuse: Different types of fuses, such as fast-acting fuses and time-delay fuses, serve various applications within AC drives. Fast-acting fuses respond quickly to overloads, while time-delay fuses can tolerate temporary surges, making them suitable for applications with high inrush currents.
- Maintenance and Replacement: Regular inspection and timely replacement of fuses are vital for maintaining the operational integrity of AC drives. A blown fuse indicates a potential issue in the system, and replacing it ensures that the drive continues to operate safely and efficiently.
What Types of Fuses Should Be Used with AC Drives?
The best fuses for AC drives include several types that cater to the specific requirements of motor protection and circuit safety.
- Class J Fuses: These fuses are designed for motor circuits and provide excellent overload protection and short-circuit protection. They can handle high inrush currents, which are typical in AC drives, making them ideal for applications where motors are frequently started and stopped.
- Class L Fuses: Class L fuses are suitable for larger motors and offer high interrupting ratings. They are designed to protect against overcurrents and are often used in industrial applications where high power is involved, ensuring that the AC drive operates safely under load conditions.
- Time-Delay Fuses: These fuses are specifically designed to allow temporary overloads without blowing, making them suitable for AC drives that experience transient conditions, such as startup inrush currents. This feature ensures that the drive can operate effectively without nuisance tripping.
- Fast-Acting Fuses: Fast-acting fuses are used for sensitive electronic components within AC drives. They provide immediate protection against short circuits and overcurrents, which is critical for safeguarding the drive’s internal circuitry and ensuring reliability in operation.
- Current-Limiting Fuses: These fuses are designed to limit the amount of current that can pass through during a fault condition. This is particularly important for AC drives as it helps to protect downstream equipment from the damaging effects of high fault currents, thereby enhancing system stability.
How Do Fast-Acting Fuses Enhance AC Drive Performance?
By providing immediate protection, these fuses enhance the reliability of AC drive systems, allowing them to operate smoothly and consistently under varying load conditions. This reliability is essential for maintaining operational efficiency, particularly in industrial settings where any interruption can lead to significant productivity losses.
Fast-acting fuses help to limit downtime since they can be replaced quickly and easily after a fault, ensuring that the AC drive can resume normal operation without prolonged interruptions. This feature is particularly beneficial in critical applications where uptime is paramount.
Moreover, by protecting motor components from overloads and short circuits, fast-acting fuses extend the lifespan of the entire drive system. This not only reduces maintenance costs but also ensures that the drive operates within its optimal parameters.
These fuses are particularly advantageous in applications with high inrush currents, as they can handle the initial surge without blowing unnecessarily, providing robust protection while maintaining operational integrity. This characteristic makes them ideal for use in a variety of industrial and commercial applications where AC drives are prevalent.
Why Are Slow-Blow Fuses Important for AC Drives?
Slow-blow fuses are important for AC drives primarily because they can tolerate temporary inrush currents without blowing, which is essential for the proper functioning of motors and drives that experience high startup currents.
According to the National Electrical Manufacturers Association (NEMA), AC drives can have inrush currents that are significantly higher than the normal operating current, often exceeding 6 to 8 times the rated current during initial startup. This characteristic makes slow-blow fuses ideal, as they are designed to withstand these temporary surges and prevent unnecessary interruptions in operation (NEMA, 2021).
The underlying mechanism involves the thermal and time-delay characteristics of slow-blow fuses, which allow them to absorb these brief spikes in current without tripping. When a motor starts, it requires more current to overcome inertia, and a fast-acting fuse would likely blow during this phase, leading to downtime and potential damage to the system. By using slow-blow fuses, engineers ensure that the protection mechanism is aligned with the operational needs of the AC drive, effectively safeguarding the equipment while allowing it to function as intended (IEEE, 2020).
What Factors Influence the Selection of Fuses for AC Drives?
Various factors play a crucial role in the selection of fuses for AC drives to ensure optimal performance and safety.
- Current Rating: The current rating of the fuse must match or exceed the maximum continuous load that the AC drive will handle. Choosing a fuse with an inadequate current rating can lead to frequent blowouts, while an oversized fuse may not provide the necessary protection against overloads.
- Voltage Rating: The voltage rating indicates the maximum voltage the fuse can safely interrupt. It’s vital to select fuses that have a voltage rating higher than the operating voltage of the AC drive to prevent arcing and ensure reliability during operation.
- Speed of Fuse: The speed of the fuse, which can be classified as fast-acting or time-delay, affects how quickly it responds to faults. Fast-acting fuses are suitable for protecting sensitive electronic components, while time-delay fuses can handle temporary overloads without blowing, making them ideal for applications with high inrush currents.
- Environmental Conditions: The environment in which the AC drive operates may necessitate specific fuse characteristics such as moisture resistance, temperature tolerance, and resistance to vibration. Fuses must be chosen based on their ability to function effectively in harsh conditions, ensuring longevity and reliability.
- Type of Load: The nature of the load connected to the AC drive significantly influences fuse selection. Inductive loads, like motors, require fuses that can handle high inrush currents, while resistive loads might use standard fuses. Understanding the load type helps in selecting a fuse that can effectively protect the circuit without nuisance tripping.
- Standards and Compliance: Adhering to industry standards and regulations is crucial when selecting fuses for AC drives. Fuses must meet specific safety standards (like UL or IEC) to ensure they provide adequate protection and reliability in the application, which can also impact warranty and insurance coverage.
How Do Voltage Ratings Affect Fuse Choices for AC Drives?
Voltage ratings play a crucial role in selecting the best fuses for AC drives, as they ensure proper protection and functionality in electrical systems.
- Fuse Voltage Rating: The voltage rating of a fuse must exceed the maximum voltage it will encounter in operation.
- AC vs. DC Ratings: Fuses designed for AC applications have different characteristics than those for DC, affecting their performance in AC drives.
- Inrush Current Consideration: Fuses must be able to tolerate inrush currents that can occur during startup, which are often higher than normal operating currents.
- Fuse Type Selection: The choice of fuse type (e.g., fast-acting or time-delay) depends on the specific application and operational conditions of the AC drive.
- Environmental Factors: The environment in which the fuse operates can impact its performance, necessitating careful consideration of ambient conditions.
The fuse voltage rating is critical because it must be higher than the operational voltage of the AC drive to prevent premature blowing and ensure reliable operation. Selecting a fuse with an inadequate voltage rating can lead to catastrophic failures or safety hazards.
AC and DC ratings differ because AC fuses must handle the zero-crossing characteristics of alternating current, while DC fuses need to extinguish arcs more effectively due to the continuous nature of the current. Using an AC-rated fuse in a DC application can result in inadequate protection and potential damage.
Inrush current is a significant factor in AC drives, as motors can draw several times their normal operational current during startup. Fuses must be capable of withstanding these inrush currents without blowing, which is why understanding the application’s specific requirements is essential.
Choosing the right type of fuse, such as fast-acting fuses for sensitive electronic components or time-delay fuses for motors, can directly affect the performance and longevity of the AC drive. The wrong fuse type may result in unnecessary interruptions or insufficient protection.
Environmental factors like temperature, humidity, and potential exposure to dust can influence the reliability of fuses in AC drives. It’s important to select fuses that are rated for the specific environmental conditions to ensure optimal performance and safety over time.
What is the Ideal Current Rating for Different AC Drive Applications?
Statistics indicate that overcurrent protection failures account for a significant percentage of electrical equipment malfunctions. Implementing the best fuses for AC drives can drastically reduce maintenance costs and extend the lifespan of machinery. Moreover, using properly rated fuses ensures compliance with safety standards set by organizations such as the Occupational Safety and Health Administration (OSHA) and the Institute of Electrical and Electronics Engineers (IEEE).
Best practices for ensuring the proper current rating include consulting manufacturer specifications, conducting load studies, and periodically reviewing and testing the protection devices in place. Additionally, integrating advanced monitoring systems can provide real-time data on current usage, enabling proactive adjustments to fuse ratings as operational demands change.
Which Brands and Models of Fuses Are Highly Recommended for AC Drives?
The best fuses for AC drives are known for their reliability and performance under varying electrical conditions.
- Siemens 3NE1 Series: These fuses are designed specifically for protecting AC drives and motors from overcurrent situations.
- Schneider Electric Fuses: Known for their high quality, Schneider Electric offers a range of fuses that provide excellent protection for variable frequency drives (VFDs).
- Mersen Fuses: Mersen fuses are renowned for their fast-acting design and ability to handle high fault currents, making them suitable for AC drive applications.
- Fuseco Fuses: These fuses are specifically engineered for use in power electronics, and they provide superior performance in AC drive systems.
- Littlefuse 313 Series: The Littlefuse 313 series is commonly used in industrial applications and is well-regarded for its robust construction and reliability.
Siemens 3NE1 Series: The Siemens 3NE1 series fuses are designed with a focus on protecting AC drives and motors from overloads and short-circuits. Their compact design and high breaking capacity make them ideal for various industrial applications, ensuring operational safety and longevity of the drives.
Schneider Electric Fuses: Schneider Electric produces a variety of fuses that cater to the specific needs of AC drives, particularly in variable frequency applications. Their fuses are known for maintaining performance even in harsh environments, which is crucial for the reliability of the equipment they protect.
Mersen Fuses: Mersen fuses feature a fast-acting design that allows them to react quickly to overcurrent situations, thus minimizing damage to AC drives. They are available in various ratings, making it easier to find a suitable option for different drive specifications, and they have a reputation for high reliability across numerous applications.
Fuseco Fuses: Designed for power electronics, Fuseco fuses offer excellent protection for AC drives, ensuring that they can operate efficiently and safely. Their innovative designs reduce the risk of nuisance tripping and are optimized for high-performance environments, making them a preferred choice for many engineers.
Littlefuse 313 Series: The Littlefuse 313 series is well-suited for industrial applications because of its robust design and ability to withstand high fault currents. These fuses are reliable and help prolong the lifespan of AC drives, which is essential for minimizing downtime in manufacturing and production environments.
What Common Problems Can Proper Fuse Selection Prevent in AC Drives?
Short circuit protection is vital for preventing severe damage during unexpected short circuits. A fast-acting fuse will disconnect the circuit almost instantly, minimizing the risk of extensive damage and ensuring safety for both the equipment and personnel.
Voltage spike mitigation is another critical function of properly selected fuses. These fuses can absorb or redirect transient voltages, protecting sensitive electronic components within the AC drive from potential damage caused by voltage surges.
Equipment longevity is significantly influenced by the choice of fuses, as the right fuses reduce stress on electrical components. This not only helps in maintaining operational efficiency but also decreases maintenance costs associated with frequent repairs or replacements.
Finally, operational reliability is greatly enhanced when the best fuses are used. By ensuring that the drive can handle various load conditions without failure, businesses can avoid unexpected downtime and maintain continuous production, which is essential in many industrial applications.
