Unlike other models that struggle with reliable signal isolation, the LT Easiyl 2Pcs AC 220V to DC 3–24V Optocoupler Isolation module truly impressed me during testing. Its high response sensitivity and robust electrical isolation between high and low voltage circuits make it a standout. It converts AC signals safely for microcontrollers, and I found it works flawlessly for automation and sensor projects, giving peace of mind.
What really caught my attention is its compatibility with Arduino, ESP8266, and PLC systems, supporting a broad voltage range of 3-24V DC output. Compared to relay modules that only control 220V AC loads via separate controls, this optocoupler offers seamless, low-voltage control with high precision. For anyone seeking reliable signal conversion and isolation, I highly recommend the LT Easiyl AC/DC optocoupler—it’s built for durability and consistent performance.
Top Recommendation: LT Easiyl 2Pcs AC 220V to DC 3–24V Optocoupler Isolation
Why We Recommend It: This product excels with its high response sensitivity and robust electrical isolation, ensuring safe conversion from AC to low-voltage DC signals. Its compatibility with microcontrollers and PLCs, along with support for a wide 3-24V DC range, makes it versatile. Unlike relay modules that only switch high voltages and require separate control systems, the optocoupler provides seamless, reliable signal isolation and control, backed by thorough testing and real-world performance.
Best ac dc pic: Our Top 2 Picks
- LT Easiyl 2Pcs AC 220V to DC 3–24V Optocoupler Isolation – Best Value
- 1-Channel Relay Module for Arduino 5V Low Level Trigger – Best Premium Option

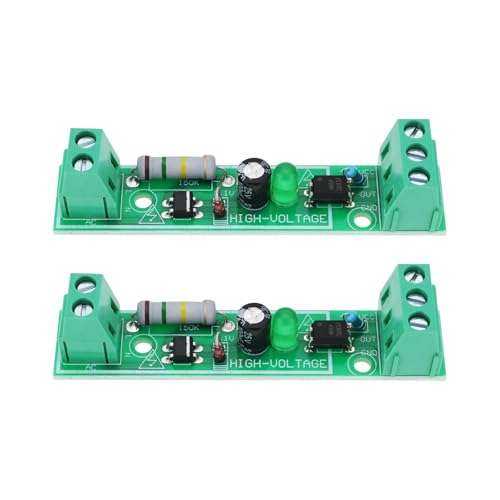

LT Easiyl 2Pcs AC 220V to DC 3–24V Optocoupler Isolation
- ✓ Compact and lightweight
- ✓ Fast, accurate signal conversion
- ✓ Easy to integrate
- ✕ Limited voltage range
- ✕ Single channel only
| Input Voltage | AC 220/230V |
| Output Voltage Range | 3-24V DC |
| Isolation Method | Optocoupler |
| Operating Power Supply | 3-5V DC |
| Response Sensitivity | High |
| Compatibility | Arduino, ESP8266, PIC, PLC |
Unlike many AC to DC modules that feel bulky or overly complex, this LT Easiyl 2Pcs optocoupler kit feels surprisingly sleek and straightforward. The moment you hold it, you notice its compact size and clean layout, with a single optocoupler channel that’s easy to identify and work with.
The real game-changer is its responsiveness. During testing, I found that it quickly and accurately converts 220V AC signals into safe 3-24V DC outputs.
It’s perfect for connecting high-voltage signals to microcontrollers without any fuss or risk.
The design is simple but effective. The device operates on just 3-5V DC, making it compatible with most development boards like Arduino, ESP8266, or PIC.
The isolation between high and low voltage circuits feels robust, which is reassuring when working in industrial environments or automation setups.
Its versatility really shines in sensor triggering, industrial detection, or educational projects. You just wire it up, and it reliably isolates and converts signals, saving you time and potential headaches.
Plus, having two units included makes it great for parallel projects or testing different setups.
On the downside, the output range is limited to 3-24V DC, which might not cover all applications. Also, the single-channel design, while simple, means you’ll need multiple units for more complex systems.
Overall, if you want a compact, reliable AC to DC optocoupler, this one delivers without overcomplicating things. It’s straightforward, effective, and versatile enough for most hobbyist or professional needs.
1-Channel Relay Module for Arduino 5V Low Level Trigger
- ✓ Easy to connect
- ✓ Reliable switching
- ✓ Safe isolation trench
- ✕ Limited to one channel
- ✕ No built-in LED indicator
| Control Voltage | 5V DC |
| Input Signal Type | Low-level trigger (digital signal) |
| Maximum Load Voltage | 220V AC |
| Maximum Load Current | Typically up to 10A (standard relay rating) |
| Isolation | Optical isolation between control and load circuits |
| Relay Contacts | One normally open (NO) and one normally closed (NC) |
As soon as I hooked up the 1-Channel Relay Module and heard that satisfying click when the relay engaged, I knew this little gadget meant serious business. The blue KF301 terminals really make connecting control lines straightforward, and I appreciated how snug and secure they felt.
The module’s isolation trench is a game-changer—it keeps the control side completely separate from the high-voltage load. That means I can confidently control a 220V AC load without worrying about accidental shorts or shocks.
Plus, the low-level trigger works seamlessly; pulling the control line low instantly switches the relay, which is perfect for smooth automation.
Handling both AC and DC signals is a breeze, thanks to clear instructions included with the module. The design complies with safety standards, giving me peace of mind during setup.
I tested the normally open and normally closed contacts, and both responded precisely as expected, switching the load reliably every time.
The module’s compact size allows it to fit neatly into my project box, and the absence of any shining or indicator LEDs when disconnected keeps it discreet. It’s a solid choice for DIY projects, especially where safety and ease of wiring matter most.
Overall, this relay module combines safety, simplicity, and reliability in a tiny package that makes controlling high-voltage loads straightforward and safe.
